FC60/FC340/FC260 法国Roller Grill热风循环烤箱/回风烤箱/对衡式锯炉)详细介绍（附图） Convection Oven from France

FC60热风循环电烤炉...法国 Roller Grill
Professional Roller Grill Convection Ovens

热风循环(对衡式) 电锯炉

型号Model:FC60/FC60 TQ
Convection Oven..Roller Grill

...	炉内热风循环,可快速烤制:面点、蛋黄酥、肉、鱼等；
	Thanks to the rapidity and the power of the convection, the convection oven FC 60 Gn 2/3 (container to put on the grid) increases cooking possibilities of every kind of meals: gratins, meat, fish, pies, cakes, soufflés…);


...	升温快速，10分钟内可达到300°C；
	Quick temperature rising: 300°C within 10 min.;

...	多功能：上下对流式烘烤、热风循环烘烤、石英管烧烤等；
	Unique in catering, the multifunction oven FC 60 TQ associates convection, Turbo Quartz, top quartz grill

技术参数 Technical Data

名称 Descripition	型号 Model	品牌 Brand	产地 Origin	功率 Power	内膛尺寸(WDH) Inside Dimension (mm)	外形尺寸(WDH) Dimension (mm)	重量 Weight
热风循环锔炉 Convection Oven	FC60	Roller Grill	法国 France	230 V,3000 W	470370350 H	595610590 H	36 Kg

名称 Descripition	型号 Model	品牌 Brand	产地 Origin	功率 Power	内膛尺寸(WDH) Inside Dimension (mm)	外形尺寸(WDH) Dimension (mm)	重量 Weight
热风循环锔炉 Convection Oven	FC60 TQ	Roller Grill	法国 France	230 V,3000 W	470370350 H	595610590 H	36 Kg

性能特点 Features

	炉内热风循环,可快速烤制:面点、蛋黄酥、肉、鱼等；

	Thanks to the rapidity and the power of the convection, the convection oven FC 60 Gn 2/3 (container to put on the grid) increases cooking possibilities of every kind of meals: gratins, meat, fish, pies, cakes, soufflés…);


	升温快速，10分钟内可达到300°C；

	Quick temperature rising: 300°C within 10 min.;


	炉膛为不锈钢材质，可拆卸式网架，双层保温门，非常容易清洁；

	Very easy cleaning: baking chamber in all stainless steel, removable grid holders, double-door easy to remove.

	温控器调节范围为： 0～300°C，配置120分钟的时控，炉膛内配置照明灯；

	Thermostat 0-300°C, 120 min. bell timer with lock position for continuous setting, inside light, pilots lights, adjustable feet.


	随机附带网架，可放4个 2/3 GN标准份盆（GN 盆需另行购买）；

	Delivered with 4 grids 450 x 340 mm.Delivered without any Gn container;

	“Turbo Quartz”,红外线石英管烧烤功能，将内部温度提高30°C，节省30%的烹饪时间!；

	A unique technology developed by Roller Grill: salamander and bottom, heating element are ventilated and regulated through bulb thermostat. 30% cooking time saving!.

操作指南 How to Use your FC60 TQ oven

...本锯炉，石英管加热，热风循环，5个功能位置，其用途介绍如下：
....The very compact multifunction oven FC 60 TQ (patented) is fitted with 5 seetings commutator

位置 0 ：表示电源开/关；
...Position 0: on/off;

位置 1：对衡式烘烤：均匀烘烤各类肉类制品，并保持肉香没有散佚；
...Position 1 《Convection》: for an homogeneous cooking of different meals at the same time without taste or smell transmission;

位置 2：面点制品烘烤：适用于烤制各类馅饼、面包、酥皮点心（主要由底部加热管加热）；
...Position 2《Ventilated pastry oven 》: ideal for pies, bread and pastries. The lower armoured heating element is running at full power. Thanks to the ventilation system, the heat is perfectly spread out throughout the baking chamber and also adjusted very accurately thanks to the bulb thermostat;

位置 3：热风循环烘烤：上部石英管和下部发热管同时加热，如用于烤肉和烤鱼，可节省30%的时间；;
...Position 3 《Turbo Quartz》: traditional oven associating top quartz and bottom armoured heating element to the ventilation system. To cook meat, fish, ready made dishes with 30% time saving as the Turbo Quartz system is increasing the inside temperature of about 30°C more;

位置 4：烧烤功能：用于食物的着色、烧烤;
...Position 4 《Quartz grill》: ventilated salamander essential to brown, broil or glaze..;

使用说明书 Operation Manual
	FC60 热风循环烤箱操作使用说明书- 中文版下载　^Chinese Version

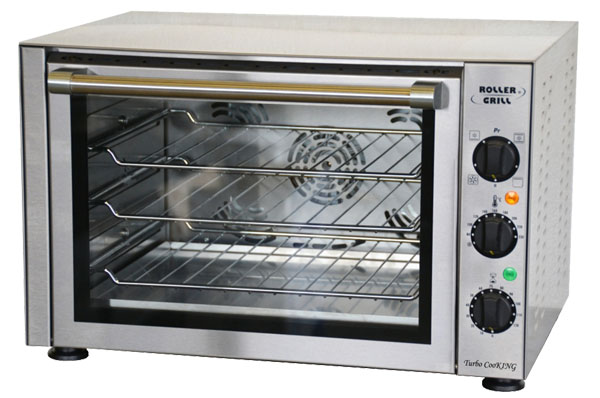

FC380 小型回风烤箱...法国 Roller Grill
Professional Roller Grill Mini Convection Ovens

热风循环烤炉-小型回风烤箱

型号Model:FC380/FC380 TQ
Mini Convection Oven..Roller Grill

...	回风烤箱,可快速烤制:羊角面包,巧克力面包,奶油蛋卷,糕点等；
	Meant for cooking or reheating viennoiseries (croissants, chocolate buns, brioches…),pastries (tarts, cookies...), ready made dishes (lasagne, bakedpotatoes), fresh, frozen or pre-raised savouries, (puff pastries, pizza,quiche…);


...	升温快速，7分钟内可达到230°C；
	Quick temperature rising :230°C in 7 minutes..;

...	38升容量,出品的品质与大的烤箱一样,非常适合空间不大的咖啡吧和快餐店；
	Invaluable to the small / medium snack bar and coffee shop. It brings the performance of our larger ovens to the location where space is limited

技术参数 Technical Data

名称 Descripition	型号 Model	品牌 Brand	产地 Origin	功率 Power	内膛尺寸(WDH) Inside Dimension (mm)	外形尺寸(WDH) Dimension (mm)	重量 Weight
热风烤箱 Convection Oven	FC380	Roller Grill	法国 France	230 V,2400 W	415350265 H	550550355 H	21 Kg

热风烤箱 Convection Oven	FC380 TQ	Roller Grill	法国 France	230 V,2400 W	415350265 H	550550355 H	22 Kg

性能特点 Features

	回风烤箱,可快速烤制:羊角面包,巧克力面包,奶油蛋卷,糕点等；

	Meant for cooking or reheating viennoiseries (croissants, chocolate buns, brioches…),pastries (tarts, cookies...), ready made dishes (lasagne, bakedpotatoes), fresh, frozen or pre-raised savouries, (puff pastries, pizza,quiche…);


	升温快速，7分钟内可达到230°C；

	Quick temperature rising: 230°C within 7 min.;

	温控器调节范围为： 0～230°C，配置120分钟的时控，炉膛内置风扇；

	Thermostat 0-250°C, 120 min. bell timer with fan, pilots lights;.


	随机附带3个烤架，1个底盘；

	Delivered with 3 cooking grids and 1 pastry tray;

	被:FC380 TQ ,为带烧烤功能的石英管,该石英加热管位于顶部,具备面火烧烤的功能；

	The multifunction oven FC 380 TQ? associates convection, Turbo Quartz?, topquartz grill salamander;.

特别推荐 Especially recommended for baking pre-raised deep-frozen products

...如何烘烤冷冻并发酵过的点心：
....baking pre-raised deep-frozen products commutator

温度180度,时间16分钟:可烤制18个冷冻的羊角面包；
...18 raised frozen croissants in 16 min., th. 180°C;

温度220度,时间18分钟:可烤制20个圆棍面包；
...20 raised frozen rolls in 18 min., th. 220°C;

温度200度,时间16分钟:可烤制18个巧克力小圆面包；；
...18 fresh raised chocolate buns in 16 min., th. 200°C.;

使用说明书 Operation Manual
	FC380 热风烤箱操作使用说明书- 英文版下载　^English Version

适用场合 Application
	适合空间不大的小型/中型咖啡吧和快餐店；
	...Invaluable to the small / medium snack bar and coffee shop.

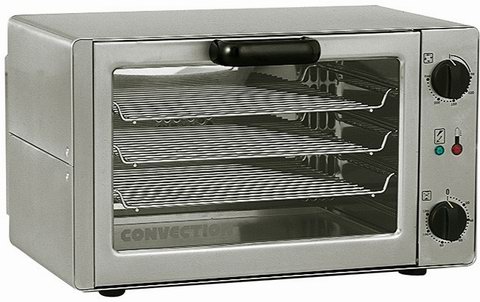

FC340 小型回风烤箱...法国 Roller Grill
Professional Roller Grill Mini Convection Ovens

热风循环烤炉-小型回风烤箱

型号Model:FC 340
Mini Convection Oven..Roller Grill

...	回风烤箱,可快速烤制:羊角面包,巧克力面包,奶油蛋卷,糕点等；
	Meant for cooking or reheating viennoiseries (croissants, chocolate buns, brioches…),pastries (tarts, cookies...), ready made dishes (lasagne, bakedpotatoes), fresh, frozen or pre-raised savouries, (puff pastries, pizza,quiche…);


...	升温快速，7分钟内可达到250°C；
	Quick temperature rising :250°C in 7 minutes..;

...	34升容量,出品的品质与大的烤箱一样,非常适合空间不大的咖啡吧和快餐店；
	Invaluable to the small / medium snack bar and coffee shop. It brings the performance of our larger ovens to the location where space is limited

技术参数 Technical Data

名称 Descripition	型号 Model	品牌 Brand	产地 Origin	功率 Power	内膛尺寸(WDH) Inside Dimension (mm)	外形尺寸(WDH) Dimension (mm)	重量 Weight
回风烤箱 Convection Oven	FC 340	Roller Grill	法国 France	230 V,2500 W	390300255 H	550470330 H	22 Kg

性能特点 Features

	回风烤箱,可快速烤制:羊角面包,巧克力面包,奶油蛋卷,糕点等；

	Meant for cooking or reheating viennoiseries (croissants, chocolate buns, brioches…),pastries (tarts, cookies...), ready made dishes (lasagne, bakedpotatoes), fresh, frozen or pre-raised savouries, (puff pastries, pizza,quiche…);


	升温快速，7分钟内可达到250°C；

	Quick temperature rising: 250°C within 7 min.;

	温控器调节范围为： 0～250°C，配置120分钟的时控，炉膛内置风扇；

	Thermostat 0-250°C, 120 min. bell timer with fan, pilots lights;.


	随机附带3个网架，1个底盘；

	Delivered with 3 cooking grids and 1 pastry tray;

特别推荐 Especially recommended for baking pre-raised deep-frozen products

...如何烘烤冷冻并发酵过的点心：
....baking pre-raised deep-frozen products commutator

温度180度,时间16分钟:可烤制18个冷冻的羊角面包；
...18 raised frozen croissants in 16 min., th. 180°C;

温度220度,时间18分钟:可烤制20个圆棍面包；
...20 raised frozen rolls in 18 min., th. 220°C;

温度200度,时间18分钟:可烤制18个巧克力小圆面包；；
...18 fresh raised chocolate buns in 16 min., th. 200°C.;

使用说明书 Operation Manual
	FC340 小型回风烤箱操作使用说明书- 英文版下载　^English Version

适用场合 Application
	适合空间不大的小型/中型咖啡吧和快餐店；
	...Invaluable to the small / medium snack bar and coffee shop.

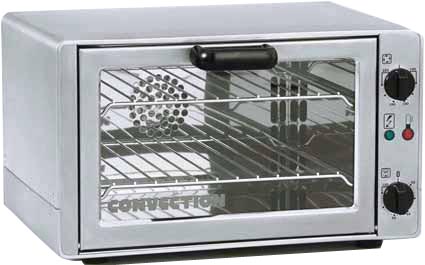

FC260 小型回风烤箱...法国 Roller Grill
Professional Roller Grill Mini Convection Ovens

热风循环烤炉-小型回风烤箱

型号Model:FC 260
Mini Convection Oven..Roller Grill

...	回风烤箱,可快速烤制:羊角面包,巧克力面包,奶油蛋卷,糕点等；
	Meant for cooking or reheating viennoiseries (croissants, chocolate buns, brioches…),pastries (tarts, cookies...), ready made dishes (lasagne, bakedpotatoes), fresh, frozen or pre-raised savouries, (puff pastries, pizza,quiche…);


...	升温快速，7分钟内可达到250°C；
	Quick temperature rising :250°C in 7 minutes..;

...	26升容量,出品的品质与大的烤箱一样,非常适合空间不大的咖啡吧和快餐店；
	Invaluable to the small / medium snack bar and coffee shop. It brings the performance of our larger ovens to the location where space is limited

技术参数 Technical Data

名称 Descripition	型号 Model	品牌 Brand	产地 Origin	功率 Power	内膛尺寸(WDH) Inside Dimension (mm)	外形尺寸(WDH) Dimension (mm)	重量 Weight
回风烤箱 Convection Oven	FC 260	Roller Grill	法国 France	230 V,1500 W	335300230 H	465475280 H	16 Kg

性能特点 Features

	回风烤箱,可快速烤制:羊角面包,巧克力面包,奶油蛋卷,糕点等；

	Meant for cooking or reheating viennoiseries (croissants, chocolate buns, brioches…),pastries (tarts, cookies...), ready made dishes (lasagne, bakedpotatoes), fresh, frozen or pre-raised savouries, (puff pastries, pizza,quiche…);


	升温快速，7分钟内可达到250°C；

	Quick temperature rising: 250°C within 7 min.;

	温控器调节范围为： 0～250°C，配置120分钟的时控，炉膛内置风扇；

	Thermostat 0-250°C, 120 min. bell timer with fan, pilots lights;.


	随机附带2个网架，1个底盘；

	Delivered with 3 cooking grids and 1 pastry tray;

特别推荐 Especially recommended for baking pre-raised deep-frozen products

...如何烘烤冷冻并发酵过的点心：
....baking pre-raised deep-frozen products commutator

温度180度,时间16分钟:可烤制18个冷冻的羊角面包；
...18 raised frozen croissants in 16 min., th. 180°C;

温度220度,时间18分钟:可烤制20个圆棍面包；
...20 raised frozen rolls in 18 min., th. 220°C;

温度200度,时间18分钟:可烤制18个巧克力小圆面包；；
...18 fresh raised chocolate buns in 16 min., th. 200°C.;

使用说明书 Operation Manual
	FC260 小型回风烤箱操作使用说明书- 英文版下载　^English Version

适用场合 Application
	适合空间不大的小型/中型咖啡吧和快餐店；
	...Invaluable to the small / medium snack bar and coffee shop.

同类产品参考 Relative Products

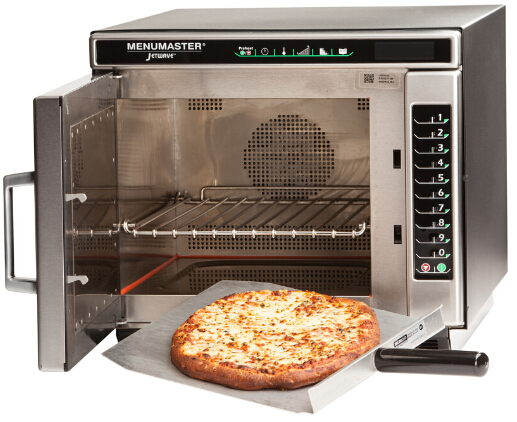

法国 Roller-grill 热风循环烤箱>>.. Convection Oven	美国 Welbilt 快速烤箱>>.. Quick Oven	意大利 Unox 旋风烤箱>>.. Convection Oven	美国 Menumaster 热风/微波快速烤箱>>.. Rapid Combine Oven	美国 Merrychef 快速烹饪烤箱>>.. Rapid Combine Oven
