日本星崎 Hoshizaki

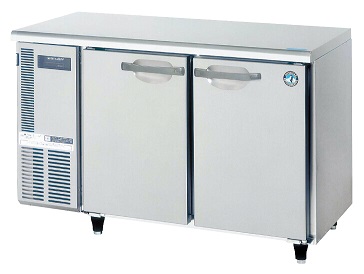

1.2米两门 平台雪柜(风冷型)

Hoshizaki 1200mm Commercial Counter Type Refrigerator & Freezers






RTC-120SDA/RTC-120SNA/FTC-120SDA/FTC-120SNA



1200mm两门 卧式冷藏/冷冻工作台
1200mm Standard Worktop and Undercounter Refrigerator & Freezers...Ducted Air Flow

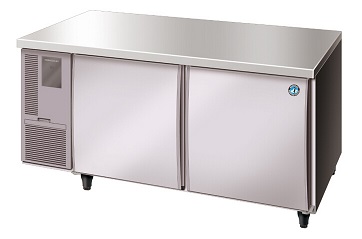

RTC-120MDA/RTC-120MNA/FTC-120MDA/FTC-120MNA



1200mm两门 卧式冷藏/冷冻工作台
1200mm Standard Worktop and Undercounter Refrigerator & Freezers...Ducted Air Flow


技术参数 Specification. 1.2米冷藏工作台 1200mm Undercounter Refrigerators
名称
Description
型号
Model
制冷方式
Mode of Refrigeration
有效内部容积
Internal Capability
电源
Power
箱内温度
Internal Tempreature
外形尺寸(W*D*H)
External Dimension
1.2米二门 冷藏工作台
2-door Counter type Refrigerator
RTC-120SDA
风冷式
Air Cooling
301 L
220V,193W,50HZ
-6°C ~ +12°C
1200*750*800
1.2米二门 冷藏工作台
2-door Counter type Refrigerator
RTC-120SNA
风冷式
Air Cooling
228 L
220V,193W,50HZ
-6°C ~ +12°C
1200*600*800

1.2米二门 冷藏工作台
2-door Counter type Refrigerator
RTC-120MDA
风冷式
Air Cooling
307 L
220V,235W,50HZ
-2°C ~ +12°C
1200*750*800
1.2米二门 冷藏工作台
2-door Counter type Refrigerator
RTC-120MNA
风冷式
Air Cooling
231 L
220V,235W,50HZ
-2°C ~ +12°C
1200*600*800

注:以上温度使用环境:外部环境温度5°C~43°C,空箱运行,且未被阳光直射;
(*) Applicable enviroment:5°C~43°C external air temperature,idle operation,with no direct sunshine exposure;

技术参数Specification. 1.2米冷冻工作台 1200mm Undercounter Freezers
名称
Description
型号
Model
制冷方式
Mode of Refrigeration
有效内部容积
Internal Capability
电源
Power
箱内温度
Internal Tempreature
外形尺寸(W*D*H)
External Dimension
1.2米二门 冷冻工作台
2-door Counter type freezers
FTC-120SDA
风冷式
Air Cooling
301 L
220V,408W,50HZ
-7°C ~ -25°C
1200*750*800
1.2米二门 冷冻工作台
2-door Counter type freezers
FTC-120SNA
风冷式
Air Cooling
228 L
220V,403W,50HZ
-7°C ~ -25°C
1200*600*800

1.2米二门 冷冻工作台
2-door Counter type freezers
FTC-120MDA
风冷式
Air Cooling
307 L
220V,408W,50HZ
-7°C ~ -23°C
1200*750*800
1.2米二门 冷冻工作台
2-door Counter type freezers
FTC-120MNA
风冷式
Air Cooling
231 L
220V,408W,50HZ
-7°C ~ -23°C
1200*600*800

注:以上温度使用环境:外部环境温度5°C~43°C,空箱运行,且未被阳光直射;
(*) Applicable enviroment:5°C~43°C external air temperature,idle operation,with no direct sunshine exposure;





日本星崎 Hoshizaki
1.5米两门 平台雪柜(风冷型)

Hoshizaki 1500mm Commercial Counter Type Refrigerator & Freezers

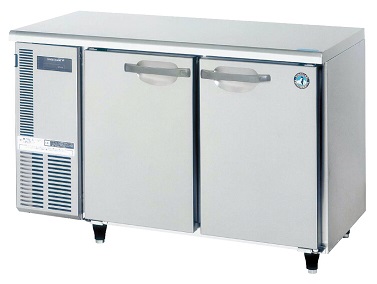

RTC-150SDA/RTC-150SNA/FTC-150SDA/FTC-150SNA



1500mm 两门 冷藏/冷冻工作台
1500mm Standard Worktop and Undercounter Refrigerator & Freezers...Air Cooling

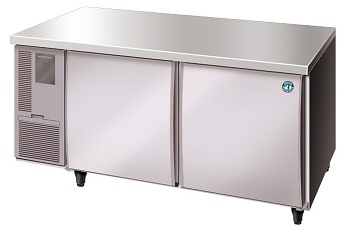

RTC-150MDA/RTC-150MNA/FTC-150MDA/FTC-150MNA



1500mm 两门 冷藏/冷冻工作台
1500mm Standard Worktop and Undercounter Refrigerator & Freezers...Air Cooling


技术参数 Specification. 1.5米冷藏工作台 1500mm Undercounter Refrigerators
名称
Description
型号
Model
制冷方式
Mode of Refrigeration
有效内部容积
Internal Capability
电源
Power
箱内温度
Internal Tempreature
外形尺寸(W*D*H)
External Dimension
1.5米二门 冷藏工作台
2-door Counter type Refrigerator
RTC-150SDA
风冷式
Air Cooling
413 L
220V,246W,50HZ
-6°C ~ +12°C
1500*750*800
1.5米二门 冷藏工作台
2-door Counter type Refrigerator
RTC-150SNA
风冷式
Air Cooling
313 L
220V,246W,50HZ
-6°C ~ +12°C
1500*600*800

1.5米二门 冷藏工作台
2-door Counter type Refrigerator
RTC-150MDA
风冷式
Air Cooling
420 L
220V,255W,50HZ
-2°C ~ +12°C
1500*750*800
1.5米二门 冷藏工作台
2-door Counter type Refrigerator
RTC-150MNA
风冷式
Air Cooling
318 L
220V,255W,50HZ
-2°C ~ +12°C
1500*600*800

注:以上温度使用环境:外部环境温度5°C~43°C,空箱运行,且未被阳光直射;
(*) Applicable enviroment:5°C~43°C external air temperature,idle operation,with no direct sunshine exposure;

技术参数Specification. 1.5米冷冻工作台 1500mm Undercounter Freezers
名称
Description
型号
Model
制冷方式
Mode of Refrigeration
有效内部容积
Internal Capability
电源
Power
箱内温度
Internal Tempreature
外形尺寸(W*D*H)
External Dimension
1.5米二门 冷冻工作台
2-door Counter type Freezer
FTC-150SDA
风冷式
Air Cooling
413 L
220V,543W,50HZ
-7°C ~ -25°C
1500*750*800
1.5米二门 冷冻工作台
2-door Counter type Freezer
FTC-150SNA
风冷式
Air Cooling
313 L
220V,473W,50HZ
-7°C ~ -25°C
1500*600*800

1.5米二门 冷冻工作台
2-door Counter type freezers
FTC-150MDA
风冷式
Air Cooling
420 L
220V,543W,50HZ
-7°C ~ -23°C
1500*750*800
1.5米二门 冷冻工作台
2-door Counter type freezers
FTC-150MNA
风冷式
Air Cooling
318 L
220V,543W,50HZ
-7°C ~ -23°C
1500*600*800

注:以上温度使用环境:外部环境温度5°C~43°C,空箱运行,且未被阳光直射;
(*) Applicable enviroment:5°C~43°C external air temperature,idle operation,with no direct sunshine exposure;






日本星崎 Hoshizaki
1.8米三门 平台雪柜(风冷型)

Hoshizaki 1800mm Commercial Counter Type Refrigerator & Freezers

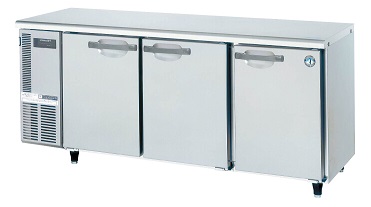

RTC-180SDA/RTC-180SNA/FTC-180SDA/FTC-180SNA



1800mm 三门 卧式冷藏/冷冻 工作台
1800mm Standard Worktop and Undercounter Refrigerator & Freezers...Air Cooling

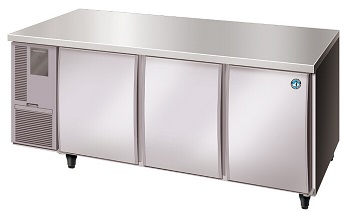

RTC-180MDA/RTC-180MNA/FTC-180MDA/FTC-180MNA

1800mm 三门 卧式冷藏/冷冻 工作台
1800mm Standard Worktop and Undercounter Refrigerator & Freezers...Air Cooling


技术参数 Specification. 1.8米冷藏工作台 1800mm Undercounter Refrigerators
名称
Description
型号
Model
制冷方式
Mode of Refrigeration
有效内部容积
Internal Capability
电源
Power
箱内温度
Internal Tempreature
外形尺寸(W*D*H)
External Dimension
1.8米三门 冷藏工作台
3-door Counter type Refrigerator
RTC-180SDA
风冷式
Air Cooling
524 L
220V,304W,50HZ
-6°C ~ +12°C
1800*750*800
1.8米三门 冷藏工作台
3-door Counter type Refrigerator
RTC-180SNA
风冷式
Air Cooling
398 L
220V,304W,50HZ
-6°C ~ +12°C
1800*600*800

1.8米三门 冷藏工作台
3-door Counter type Refrigerator
RTC-180MDA
风冷式
Air Cooling
530 L
220V,255W,50HZ
-2°C ~ +12°C
1800*750*800
1.8米三门 冷藏工作台
3-door Counter type Refrigerator
RTC-180MNA
风冷式
Air Cooling
401 L
220V,255W,50HZ
-2°C ~ +12°C
1800*600*800

注:以上温度使用环境:外部环境温度5°C~43°C,空箱运行,且未被阳光直射;
(*) Applicable enviroment:5°C~43°C external air temperature,idle operation,with no direct sunshine exposure;

技术参数Specification. 1.8米冷冻工作台 1800mm Undercounter Freezers
名称
Description
型号
Model
制冷方式
Mode of Refrigeration
有效内部容积
Internal Capability
电源
Power
箱内温度
Internal Tempreature
外形尺寸(W*D*H)
External Dimension
1.8米三门 冷冻工作台
3-door Counter type Freezer
FTC-180SDA
风冷式
Air Cooling
524 L
220V,582W,50HZ
-7°C ~ -25°C
1800*750*800
1.8米三门 冷冻工作台
3-door Counter type Freezer
FTC-180SNA
风冷式
Air Cooling
398 L
220V,582W,50HZ
-7°C ~ -25°C
1800*600*800

1.8米三门 冷冻工作台
3-door Counter type freezers
FTC-180MDA
风冷式
Air Cooling
530 L
220V,543W,50HZ
-7°C ~ -23°C
1800*750*800
1.8米三门 冷冻工作台
3-door Counter type freezers
FTC-180MNA
风冷式
Air Cooling
401 L
220V,543W,50HZ
-7°C ~ -23°C
1800*600*800

注:以上温度使用环境:外部环境温度5°C~43°C,空箱运行,且未被阳光直射;
(*) Applicable enviroment:5°C~43°C external air temperature,idle operation,with no direct sunshine exposure;






日本星崎 Hoshizaki
抽屉/四抽屉/六抽屉 雪柜(风冷型)

Hoshizaki Commercial Drawer Type Undercounter Refrigerator & Freezers

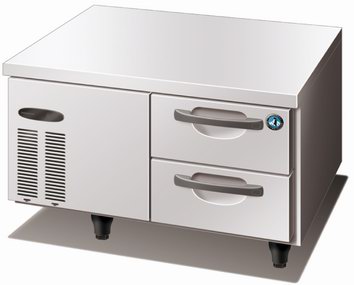

980mm 两抽屉 低平台.冷藏/冷冻 工作台
1400mm Worktop & Drawer type undercounter Refrigerator & Freezers


技术参数 Specification. 4门抽屉式冷藏/冷冻工作台 Drawer-type Undercounter Refrigerators & Freezers
名称
Description
型号
Model
制冷方式
Mode of Refrigeration
有效内部容积
Internal Capability
电源
Power
箱内温度
Internal Tempreature
外形尺寸(W*D*H)
External Dimension
2门 抽屉式 冷藏工作台
2-drawer worktop type Refrigerator
RTL-98DDAC
风冷式
Air Cooling
85 L
1/1GN盆
220V,239W,50HZ
-6°C ~ +12°C
980*750*470+100
2门 抽屉式 冷冻工作台
2-drawer worktop type Freezers
FTL-98DDAC
风冷式
Air Cooling
85 L
1/1GN盆
220V,376W,50HZ
-7°C ~ -23°C
980*750*470+100

注:以上温度使用环境:外部环境温度5°C~38°C,空箱运行,且未被阳光直射;
(*) Applicable enviroment:5°C~38°C external air temperature,idle operation,with no direct sunshine exposure;

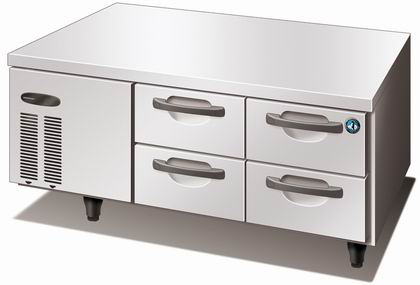

1400mm 四抽屉 低平台.冷藏/冷冻 工作台
1400mm Worktop & Drawer type undercounter Refrigerator & Freezers


技术参数 Specification. 4门抽屉式冷藏/冷冻工作台 Drawer-type Undercounter Refrigerators & Freezers
名称
Description
型号
Model
制冷方式
Mode of Refrigeration
有效内部容积
Internal Capability
电源
Power
箱内温度
Internal Tempreature
外形尺寸(W*D*H)
External Dimension
4门 抽屉式 冷藏工作台
4-drawer worktop type Refrigerator
RTL-140DDAC
风冷式
Air Cooling
176 L
1/1GN盆
220V,248W,50HZ
-6°C ~ +12°C
1400*750*470+100
4门 抽屉式 冷冻工作台
4-drawer worktop type Freezers
FTL-140DDAC
风冷式
Air Cooling
176 L
1/1GN盆
220V,390W,50HZ
-7°C ~ -23°C
1400*750*470+100

注:以上温度使用环境:外部环境温度5°C~38°C,空箱运行,且未被阳光直射;
(*) Applicable enviroment:5°C~38°C external air temperature,idle operation,with no direct sunshine exposure;

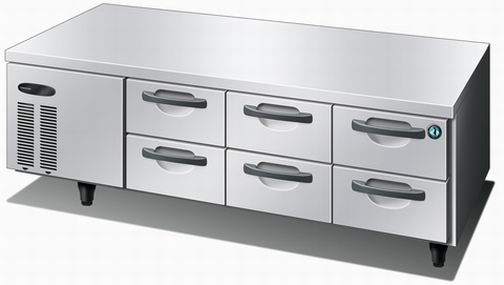

1820mm 六抽屉 低平台.冷藏/冷冻 工作台
1820mm Worktop & Drawer type undercounter Refrigerator & Freezers


技术参数 Specification. 6门抽屉式冷藏/冷冻工作台 Drawer-type Undercounter Refrigerators & Freezers
名称
Description
型号
Model
制冷方式
Mode of Refrigeration
有效内部容积
Internal Capability
电源
Power
箱内温度
Internal Tempreature
外形尺寸(W*D*H)
External Dimension
6门 抽屉式 冷藏工作台
6-drawer worktop type Refrigerator
RTL-182DDAC
风冷式
Air Cooling
267 L
1/1GN盆
220V,257W,50HZ
-6°C ~ +12°C
1820*750*470+100
6门 抽屉式 冷冻工作台
6-drawer worktop type Freezer
FTL-182DDAC
风冷式
Air Cooling
267 L
1/1GN盆
220V,418W,50HZ
-7°C ~ -23°C
1820*750*470+100

注:以上温度使用环境:外部环境温度5°C~38°C,空箱运行,且未被阳光直射;
(*) Applicable enviroment:5°C~38°C external air temperature,idle operation,with no direct sunshine exposure;







70万次开门试验
.....................


45度角 可以自动关门
............................


可防止因为半开门而冷气外泄,特别适用于商用厨房频繁开关门的情况


高精度温度管理
.....................


温度控制范围为±2°C,可进行细微精确的控制



风扇外观

风扇细节
直流DC风扇马达
.....................


直流DC风扇马达,散热少,避免影响库内温度;


除霜前

除霜后
电脑自动除霜
.....................


自动除霜,库内温度回升缓慢



标准网架式样

适用于GN盘
可定制国际标准GN盘
.....................


标准样式为网架,可定制国际标准GN盘

技术文档 星崎 卧式冷藏.冷冻冰箱 使用手册(.pdf格式)
