CM15意大利Tecnomac 15盘急速冷冻柜/速冻柜详细介绍(附图) Cinnamon series Blast Chillers/Shock Frezzers by Tecnomac

15盘急速冷冻柜/速冻柜(CM15)...意大利 Tecnomac
Cinnamon series Blast Chillers/Shock Freezers...Italy Tecnomac

By Tecnomac

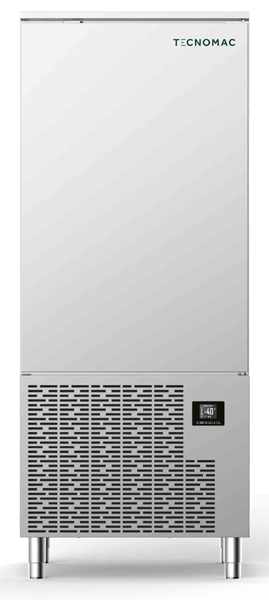

型号 Model：CM15 Tecnomac 15盘急速冷冻柜 Blast Chillers/Shock Freezers

	急速冷冻,将食品中心温度降到-18℃,同时保证食材原有的风味； The blast freezer lowers the temperature at the core of the food to -18°C, a sufficient time to obtain micro-crystallisation, keeping all the qualities of the food whole;


	全世界成千上万的厨师已经成功使用Tecnomac速冻柜,提高了工作效率； Thousands of operators all over the world are already successfully using Tecnomac blast chillers/freezers, thus improving their work, leaving more time for creativity;.

产品描述 Description

.品名 Description	15盘急速冷冻柜/冷却柜 Blast Chillers/Shock Freezers

.品牌 Brand	Tecnomac.

.型号 Model	CM15

主要参数 Technicals

容量Capcaity(可以容纳以下物品,但随机不包含托盘和冰淇淋箱)
	600*400 的托盘 Trays	15个
	GN 1/1的托盘 Trays	15个
	冰淇淋盘165360H120mm Ice cream pans	21个
	托盘间的距离 Trays Pitch	68 mm

技术特征 Power
	功率 Powers	6250 W,12.4A
	电压 Voltage	380-420V/3N/50hz
	冷凝机组 Condensing unit	自带冷凝机组Integrated condensing unit

	可选功能(非标配) Options
		脚轮Castors kit
		臭氧杀菌功能Ozone sanitization
		·水冷型 Water condensing unit;
		·Wifi接口Bi-Directional Connectivity 4.0 and Wi-Fi;

性能特点 Features


急速冷却 Blast Chilling	急速冷冻 Shock Freezing
...食品中心温度在90分钟内,降到+3°C,快速越过65度~10度的危险范围, ...抑制细菌的繁殖和食品的脱水;	...冷冻过程中,水分子转化为晶体,冷冻速度越快,晶体越小,从而不会破坏食物的结构;,

...保证了食品的色香味,延长了食品的货架期;	...Tecnomac速冻柜,270分钟内,将食品中心温度降到-18℃同时保证食材原有的风味

CM系列是新款智能型的速冻柜,简便易用,环境友好;

....CINNAMON is the new smart blast chiller: easy use, eco-friendly and performing.

快速冷却和速冻,适用于厨房,饼房和冰淇淋店;

....Blast chilling and deep freezing in the kitchen, pastry and ice cream have never been so simple.

两种快速冷却模式(软式和硬式);两种速冻模式(软式和硬式);

....Two modes of blast chilling (soft and hard) and two modes of shock freezing (soft and hard).

带触摸式控制屏;

....New capacitive Touch control panel.

新一代中心控温探针;

....New heated core probe.

每一次快速冷却完成后,自动保温在+2°C;

....Blast chilling:Each cycle will end with automatic conservation phase at +2°C.

每一次速冻完成后,自动保温在-25°C;

....Shock freezing:At the end of each working cycle, the automatic conservation of the food is set at -25°C..

软式冷却Soft模式---使用于蔬菜、米饭类食物；
.... Soft Blast chilling:Suited for delicate or thin foods such as rice, vegetables, fried foods；

硬式冷却Hard 模式---适用于肉类或厚质的食物；
.... Hard Blast chilling:Very effective for dense, greasy and large-sized foods；

硬式冷冻Hard模式---适用于肉类或厚质的食物冷冻；
.... Shock Freezing:Suited for any food product；

操作说明 Operation Manual
	Tecnomac CM15 速冻柜产品资料-^英文版下载 ^CM15 English Brochure
