Merrychef E4 商用快速烹饪烤箱详细介绍(附图) Accelerated Cooking Ovens by Merrychef

E4 商用快速烹饪烤箱...美国 Merrychef
Rapid and Accelerated Cooking Ovens...UK.Merrychef

Elkon Series


型号 Model：E4 商用快速烹饪烤箱...Merrychef Elkon 系列 Merrychef Rapid and Accelerated Cooking Ovens

	双重加热-电热管加热和微波加热,烹饪速度比普通烤箱快15倍； E3 combines two heat technologies – convection and microwave – achieving cook times that are 15x times than conventional ovens,


	图像化菜单,触摸屏,使得烹饪简单快捷,非常适用于咖啡店,前厨房,便利店,面包房等厨房空间有限的地方； Ideal for coffee shops, food courts, convenience stores, bakeries etc;.

性能特点 Features

■ 易于操作 Easy to use

	图像触摸屏技术； Pictoral easyToUCH screen technology;


	USB的连接,及时更新菜单； Menu Connect software enables instant USB menu updates;


	监督自锁设计,让日常维护更方便； Monitored filter design for ease of daily maintenance;

■ 保证每次的烹饪品质
Guaranteed perfect results every time

	精确的温度控制,保证食品的品质和美味； Precise power levels to cook the most delicate products;


	通过USB盘,多渠道下载,更新菜单程序； Programmes downloaded across multiple outlets via USB memory stick;

■ 减少排队和服务时间
Reduced queuing and service times

	提高服务速度和质量； Increase speed, service, quality and freshness;


	采用三项加热技术(电热加热,风扇旋风,微波加热)； Four heating technologies (convected heat, Planar Plumes, impingement air and microwave energy);


	比传统烹饪所用时间快15倍； Cooks up to 5 x faster (than traditional cooking methods);

■ 安全性和成本效益
Improved safety & Cost effective

	烹饪食物时,烤箱外部仍然保持常温,不会烫伤； The cool-to-touch oven means food heats quickly while the outside stays cool;


	接单烹饪,减少食物和能源的浪费； Cooking to order reduces waste;


	新的催化剂过滤技术,消除油脂,减少烹饪产生的气味,无需配置通风系统； Latest catalyst technology eliminates grease and reduces cook odours, avoiding the need for separate extraction and ventilation systems;



图像菜单,触摸屏,易于操作； Pictoral easyToUCH screen technology;	USB的连接,及时更新菜单； Menu Connect software enables instant USB menu updates;	比传统烹饪所用时间快15倍； Cooks up to 15 x faster (than traditional cooking methods);	电热管加热,风扇旋风,微波加热； convected heat,impingement air and microwave energy;

技术参数 Technical Data

名称 Descripition	型号 Model	容量 Cavity Space	热风烧烤功率 Convection Power	微波功率 Microwave Power	输入功率 Output Power	内膛尺寸(WDH) Inside Dimension (mm)	外形尺寸(WDH) Outside Dimension (mm)	重量 Ship Weight
快速烹饪烤箱 Combination Oven	E4	30 L	3.2 KW	1.5 KW 2个磁控管	230V/380V 7.0 KW	375370218 H 1/4 GN 盆	584750591 H	83 Kg

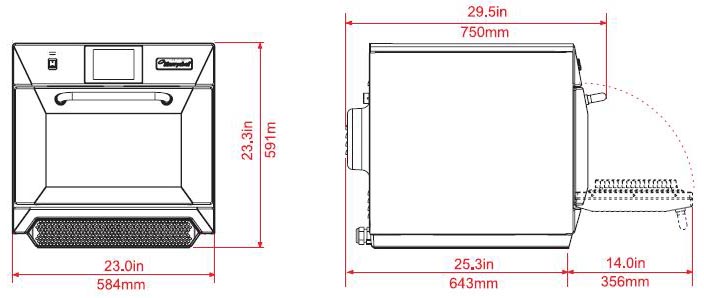

外形尺寸 Dimensions

应用范围 Application

	可烘烤各种食物，如批萨、海鲜、百吉饼以及风味特色小吃； Designed to cook a multitude of products including pizza,seafood,bagels,ethnic foods and more;


	特别适合于空间狭小的场所，如外卖的小店、亭子； Ideally suited for Kiosk and express-style locations where smaller ovens are required;


	使用场所：批萨外卖店、快餐连锁、咖啡吧、宾馆酒店等； Avalible for fast food chain,express-style location,coffee bar and hotel;

操作说明 Operation Manual
	E4 快速烹饪烤箱操作使用说明书-^英文版下载 ^E4 English Operation Manual

小贴士 Tips

E4 缔造高品质的烹饪效果..速度提高15倍
