首页>清洁设备专栏>商用龙头




Equip系列 推杯龙头+接水盆...美国 T&S 商用洁具
Glass filler & Water Station..USA T&S/Equip


Model:5GF-8P-WS

推杯龙头+接水盆(台式)
Glass filler & Water Station
产品描述 Description

台式 推杯龙头+接水盆,台盆为不锈钢材质;
  Deck Water station;18 gauge stainless steel drip pan;

杯子离开龙头,瞬间停止流水龙头上装有水量调节开关
  nstantaneous shut-off ;Volume control adjustable with screwdriver ;

随货配置安装用不锈钢螺丝;
  Stainless steel screws for mounting included ;

建议台面开孔尺寸为:(267mm×127mm)
  Suggested cut-out: 10-1/2” x 5”;

1/2” NPT外螺纹连接杆;直径为2”(58mm)的可调式法兰;
  1/2” NPT male shank ;2” diameter adjustable flange;

重量:2.72公斤;
  Weight6.70 lb (2.72 kg);

安装说明 Installation Manual
  5GF-8P-WS 注水站 零配件图- 英文版下载
  5GF-8P-WS Parts Explosions-English Version



Model:5GF-8P/5GF-16P


桌上型.推杯龙头
Pedestal Push Back Single Glass Filler
产品描述 Description

单开.推杯龙头.桌上型;
  Single pedestal type push back glass filler;

柱杆底部带Ø2“(58mm) 的可调节法兰;
  Adjustable flange on shank of pedestal;

1/2” NPT外螺纹连接杆
  1/2” NPT male shank ;

5GF-8P:推杯出水口距台盆面为8”(203mm);
5GF-16P:推杯出水口距台盆面为16”(406mm);
  5GF-8P Base of flange to outlet is 8" (203mm) ;
5GF-16P Base of flange to outlet is 16" (406mm) ;

龙头上装有水量调节开关杯子离开龙头,瞬间停止流水
  Volume regulator ;Instantaneous shut-off ;

重量:1.36公斤;
  Weight6.1.36 kg;

安装说明 Installation Manual
  5GF-8P 注水站 零配件图- 英文版下载
  5GF-16P 注水站 零配件图- 英文版下载




天仕系列 推杯龙头+接水盆...美国 T&S 商用洁具
Glass filler & Water Station..USA T&S


Model:B-1230

推杯龙头+接水盆
Glass filler & Water Station
产品描述 Description

推杯龙头+接水盆,高质不锈钢;
  Water station;

台盆尺寸:267mm*318mm
  10-1/2" (267mm) x 12-1/2" (318mm) drip pan is one piece 18 gauge stainless steel;

推杯龙头离台盆净高203mm
  Push back glass filler with 8" (203mm) clearance from tip to pan ;

端部为1/4”联接口;
  Coupling nut and 1/4" sweat tailpiece for copper tube connection ;

台盆排水口直径:57mm
  2 1/4"diameter grid drain;

台盆下排水管尺寸:Ø32mm x 102mm 长;
  Drain 1 1/4" x 4" long. 17 guage tailpiece ;

安装说明 Installation Manual
  B-1230 注水站 零配件图- 英文版下载
  B-1230 Parts Explosions-English Version



Model:B-1210

桌上型.推杯龙头
Pedestal Push Back Single Glass Filler
产品描述 Description

单开.推杯龙头.桌上型;
  Single pedestal type push back glass filler;

柱杆底部带Ø2“ 的可调节法兰;
  Adjustable flange on shank of pedestal;

端部为1/2”外螺纹,长2“(51mm)
  1/2" IPS male shank 2" (51mm) long ;

推杯出水口距台盆面为8”(203mm);
  Base of flange to outlet is 8" (203mm) ;

龙头上装有水量调节开关
  Volume regulator ;

杯子离开龙头,瞬间停止流水
  Instantaneous shut-off ;

安装说明 Installation Manual
  B-1210 推杯龙头 零配件图- 英文版下载
  B-1210 Parts Explosions-English Version



Model:B-1205

靠墙式.推杯龙头
Push Back Glass Filler(Wall Mounted)
产品描述 Description

单开.推杯龙头.;
  Push back glass filler;

靠墙安装
  Wall mounted;

出水口离进水口89mm
  3-1/2" (89mm) center of outlet to inlet ;

龙头上装有水量调节开关
  Volume regulator ;

杯子离开龙头,瞬间停止流水
  Instantaneous shut-off ;

安装说明 Installation Manual
  B-1205 推杯龙头 零配件图- 英文版下载
  B-1205Parts Explosions-English Version






推杯龙头+接水盆...Pre-rinse 商用洁具
Pre-rinse..Glass filler & Water Stations

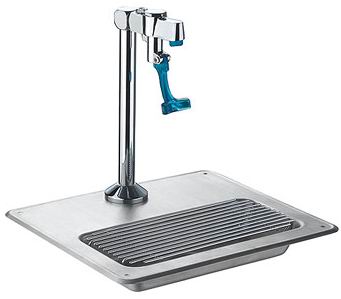

Model:9851

推杯龙头+接水盆
Glass filler & Water Station



产品描述 Description

推杯龙头+接水盆,高质不锈钢;
  Water station;

台盆尺寸:267mm*318mm
  10-1/2" (267mm) x 12-1/2" (318mm) drip pan is one piece 18 gauge stainless steel;

推杯龙头离台盆净高203mm
  Push back glass filler with 8" (203mm) clearance from tip to pan ;

配G1/2"外牙接头;
  Coupling nut and 1/2" sweat tailpiece for copper tube connection ;

台盆排水口直径:57mm
  2 1/4"diameter grid drain;

龙头上装有水量调节开关
  Volume regulator;



推杯龙头...Pre-rinse 商用洁具
Pre-rinse..Single Glass filler

Model:9850

桌上型.推杯龙头
Pedestal Push Back Single Glass Filler




产品描述 Description

单开.推杯龙头.桌上型;
  Single pedestal type push back glass filler;

柱杆底部带Ø2“ 的可调节法兰;
  Adjustable flange on shank of pedestal;

配G1/2"外牙接头
  1/2" IPS male ;

推杯出水口距台盆面为8”(203mm);
  Base of flange to outlet is 8" (203mm) ;

龙头上装有水量调节开关
  Volume regulator ;

杯子离开龙头,瞬间停止流水
  Instantaneous shut-off ;



Model:9850-D

桌上型.双向 推杯龙头
Pedestal Push Back Double Glass Filler



产品描述 Description

双向.推杯龙头.桌上型;
  Double pedestal type push back glass filler;

柱杆底部带Ø2“ 的可调节法兰;
  Adjustable flange on shank of pedestal;

配G1/2"外牙接头
  1/2" IPS male ;

推杯出水口距台盆面为8”(203mm);
  Base of flange to outlet is 8" (203mm) ;

龙头上装有水量调节开关
  Volume regulator ;

杯子离开龙头,瞬间停止流水
  Instantaneous shut-off ;




Model:9850-F

靠墙式.推杯龙头
Push Back Glass Filler(Wall Mounted)



产品描述 Description

单开.推杯龙头.;
  Push back glass filler;

靠墙安装
  Wall mounted;

出水口离进水口89mm
  3-1/2" (89mm) center of outlet to inlet ;

龙头上装有水量调节开关
  Volume regulator ;

杯子离开龙头,瞬间停止流水
  Instantaneous shut-off ;
