首页>清洁设备>真空包装机      本页目录  W8 M系列 W8系列 W8 Easy系列 Easyvac




商用型真空包装机...意大利 Sirman 加工包装设备
Vacuum Packaging Machine...Italy Sirman




真空包装机(W8 Easy 系列) Sirman Vacuum Packaging Machine
...
W8 M,简化了电子控制,操作更友好简单
  "Easy" identifies a simplified control board that provides all the main functions necessary for a complete professional use:

...
凹型台面,更方便包装汤汁、酱料等产品
  Surface for liquid bags:

技术参数 Technical Data

型号
Model
产地
Origin
功率
Power
封装杆长
Sealing Bar Length
内腔尺寸
Cavity Dim
真空泵
Vacuum Pump
外形尺寸(W*D*H)
Dimension(mm)
包装尺寸
Package size
重量
Weight

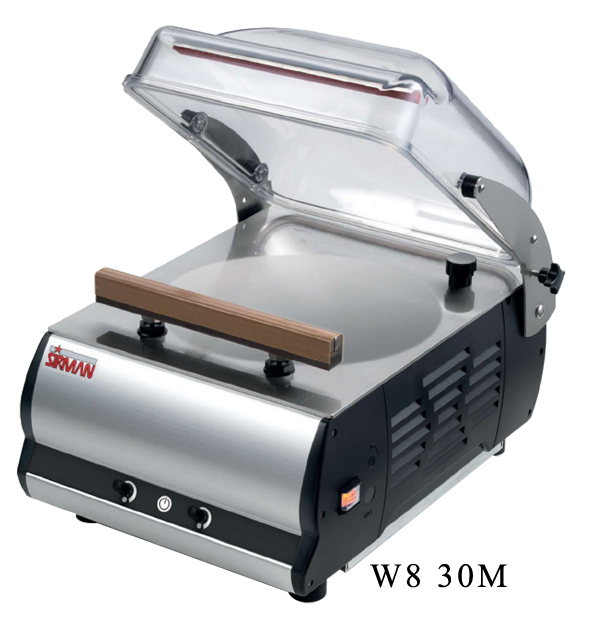

W8 30 M
Italy
意大利
220V,350W
310 mm
340*360*160 mm
8 mc/h
402*525*408/587
720*570*770
38/48Kg
W8 40 M
Italy
意大利
220V,750W
410 mm
430*410*170 mm
20 mc/h
493*585*422/630
760*640*770
56/66Kg

前视图 Front View
侧视图 Side View
性能特点 Features
用于调节抽真空和封口时间的手动旋钮,使得控制更加直观高效;
  Controls Manual controls with fast and intuitive adjustment of vacuum and sealing time;

凹型台面,更方便包装汤汁、酱料等产品;
  Surface for liquid bags;

厚实的透明盖,可观察整个工作过程
  Thick transparent plexiglass lid for viewing the process from start to finish:

封装杆可以完全拆卸:
  Removable sealing bar:

盖子经升级处理,包装容量大
  Bell in great development of volume:

程序结束后,盖子自动弹起
  Automatic lifting the lid by means of pneumatic pistons;

包装台面平滑,清洁非常方便
  Extremely easy to clean thanks to the perfect flatness of the support product plan;



操作说明 Operation Manual
  真空包装机 操作使用说明书-^英文版下载 ^English Operation Manual




商用型真空包装机...意大利 Sirman 加工包装设备
Vacuum Packaging Machine...Italy Sirman

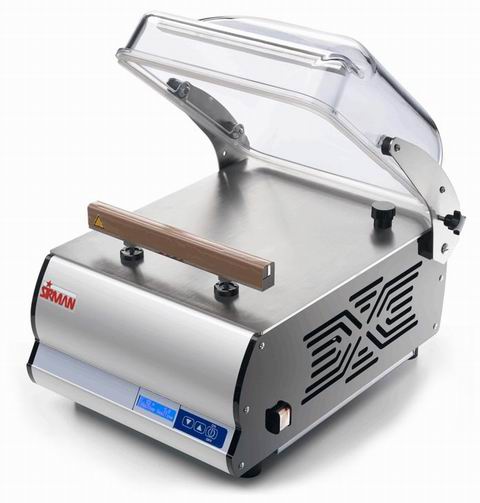

真空包装机(W8 Easy 系列) Sirman Vacuum Packaging Machine
...
W8 Easy系列,简化了电子控制,操作更友好简单
  "Easy" identifies a simplified control board that provides all the main functions necessary for a complete professional use:

...
Easy 系列保留了常规系列完全相同的功能和特征
  All the other technical and functional specifications of the machine are the same as in the amplified version.:

技术参数 Technical Data

型号
Model
产地
Origin
功率
Power
封装杆长
Sealing Bar Length
内腔尺寸
Cavity Dim
真空泵
Vacuum Pump
外形尺寸(W*D*H)
Dimension(mm)
W8 30 Easy 不锈钢表面
Italy
意大利
220V,350W
310 mm
340*360*132 mm
8 mc/h
402*525*360/480
W8 40 Easy 不锈钢表面
Italy
意大利
220V,750W
410 mm
430*410*140 mm
20 mc/h
495*585*370/542

前视图 Front View
侧视图 Side View
性能特点 Features
结构紧凑,操控简便;
  Exclusively designed with simple-to-use controls and a reduced footprint to conserve workspace;

Bush 真空泵,5mm厚的304不锈钢真空内腔;
  Bush vacuum pump,5 mm thick, AISI 304 stainless steel, easy to clean plain vacuum chamber;

厚实的透明盖,可观察整个工作过程
  Thick transparent plexiglass lid for viewing the process from start to finish:

封装杆可以完全拆卸:
  Removable sealing bar:

可显示:真空的百分比和剩余时间
  Vacuum percentage and time left display:

可设置:封装的时间和真空时间
  Possibility to set up sealing time and vacuum time;

10种预设的程序可供选择
  10 storable programmes;

6种 语言可供选择
  6 languages selection;


结构紧凑,操控简便
Simple-to-use Controls

操作说明 Operation Manual
  真空包装机 操作使用说明书-^英文版下载 ^English Operation Manual


商用型真空包装机...意大利 Sirman 加工包装设备
Vacuum Packaging Machine...Italy Sirman


真空包装机(W8 系列) Sirman Vacuum Packaging Machine
...
厚实的透明盖,可观察整个工作过程
  Thick transparent plexiglass lid for viewing the process from start to finish:;

...
可显示:真空的百分比和剩余时间
  Vacuum percentage and time left display;

技术参数 Technical Data

型号
Model
产地
Origin
功率
Power
封装杆长
Sealing Bar Length
内腔尺寸
Cavity Dim
真空泵
Vacuum Pump
外形尺寸(W*D*H)
Dimension(mm)
毛重
G.Weight
W8 30S
Italy
意大利
220V,350W
310 mm
340*360*132 mm
8 mc/h
402*525*360/480
48 KG
W8 30
Italy
意大利
220V,350W
310 mm
340*360*132 mm
8 mc/h
402*525*360/480
48 KG
W8 40S
Italy
意大利
220V,750W
410 mm
430*410*140 mm
20 mc/h
495*585*370/542
66 KG
W8 40
Italy
意大利
220V,750W
410 mm
430*410*140 mm
20 mc/h
495*585*370/542
66 KG
W8 50S
Italy
意大利
220V,750W
510 mm
545*460*190 mm
20 mc/h
610*640*420/605
86 KG
W8 50
Italy
意大利
220V,750W
510 mm
545*460*190 mm
20 mc/h
610*640*420/605
86 KG
W8 70
Italy
意大利
400V,1100W/三相
640*1 mm
410*2 mm
780*490*190 mm
40 mc/h
877*630*513/747
128 KG

前视图 Front View
侧视图 Side View
性能特点 Features
独特设计,结构紧凑,操控简便;
  Exclusively designed with simple-to-use controls and a reduced footprint to conserve workspace;

Bush 真空泵,5mm厚的304不锈钢真空内腔;
  Bush vacuum pump,5 mm thick, AISI 304 stainless steel, easy to clean plain vacuum chamber;

厚实的透明盖,可观察整个工作过程
  Thick transparent plexiglass lid for viewing the process from start to finish:

封装杆可以完全拆卸:
  Removable sealing bar:

可显示:真空的百分比和剩余时间
  Vacuum percentage and time left display:

可设置:封装的时间和真空时间
  Possibility to set up sealing time and vacuum time;

10种预设的程序可供选择
  10 storable programmes;

6种 语言可供选择
  6 languages selection;


结构紧凑,操控简便
Simple-to-use Controls




紧凑型真空包装机...意大利 Sirman 加工包装设备
Vacuum Packaging Machine...Italy Sirman




















与低温慢煮机配合使用,效果更佳
Ideal combined with Sous vibes

舒文 紧凑型真空包装机 型号Model:Easyvac 25/30/40

Easyvac Sirman Vacuum Packaging Machine

...
紧凑型设计,适用于小包装食品,常用于低温慢煮机配合使用;
  A compact and fast machine for small sized products, ideal combined with low temperature cooking instruments like the Softcooker;

...
可显示:真空的百分比和剩余时间
  Vacuum percentage and time left display;

技术参数 Technical Data

型号
Model
产地
Origin
封装杆长
Sealing Bar Length
功率
Power
内腔尺寸
Cavity Dim
真空泵
Vacuum Pump
外形尺寸(W*D*H)
Dimension(mm)
包装重量
Gross Weight
Easyvac 25
Italy
意大利
260 mm
220V,100W,50Hz
270*350*75 hmm
4 mc/h
320*560*257/708
32 KG
Easyvac 30
Italy
意大利
310 mm
220V,100W,50Hz
336*378*75 hmm
4 mc/h
406*565*315/731
46 KG
Easyvac 40
Italy
意大利
410 mm
220V,350W,50Hz
426*438*75 hmm
8 mc/h
494*637*315/810
52 KG

性能特点 Features
紧凑型设计,适用于小包装食品,常用于低温慢煮机配合使用;
  A compact and fast machine for small sized products, ideal combined with low temperature cooking instruments like the Softcooker;

Bush 真空泵,5mm厚的304不锈钢真空内腔;
  Bush vacuum pump,5 mm thick, AISI 304 stainless steel, easy to clean plain vacuum chamber;

自动记忆上次进行的设置
  Last setting can be saved in memory:

封装杆可以完全拆卸:
  Removable sealing bar:

可显示:真空的百分比和剩余时间
  Vacuum percentage and time left display:

可设置:封装的时间和真空时间
  Possibility to set up sealing time and vacuum time;
