Meiko迈科 U500/U400台下式洗碗机/洗杯机 Udercounter dishwasher & glassswasher by Gernamy Meiko

　德国Meiko.迈科 台下式洗杯机/洗杯机
Undercounter Glass Washers & Dishwashers_Germany Meiko

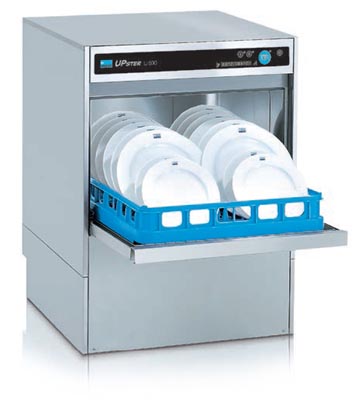

迈科台下式洗碗机/洗杯机 Uudercounter Dishwashers 型号:U500(原型号 530F)

技术参数 Technical Data

总体尺寸　　　　Dimensions (W x D x H)	600 x 600 x 820~850mm
洗涤篮规格　　　Basket dimensions	500 x 500 mm
洗涤能力　　　　BasketCapacity	30 Baskets/h
入口高度　　　　Loading Height	320 mm
水槽容量　　　　Tank filling	20 L.
漂洗用水量　　　Final rinse	3L /basket
预置洗涤程序　　Pre-set cycles	120 / 180 / 240 秒
最大篮筐洗涤量　Output	30 / 20 / 15 筐/小时
总功率　　　　　Total connected load	3.7 kW
标准配置　　　　Standard features	.230V,50赫兹 .催干剂分配器 .自动清洗功能 .电漂洗加热器	.230V,50Hz .Rinse aid dosing .Self-cleaning unit .Electric booster

性能特点 Features

	上下嘴洗涤系统、双层内壁；
	Upper and lower wash systems,double-wall insulated;


	环保过滤系统、圆角深拉伸水槽；
	Enviroment-friendly filter system,deep-drawn tank with rounded corner;


	自动清洗功能、全电子轻触式控制面板；
	Self-cleaning cycle and electronic controls with sensor touch display;


	3种洗涤程序,应对不同品种的餐具清洗;
	3 Different wash cycles, and impressively low resource consumption.


	杯筐尺寸:500 x 500mm；
	Basket size: 500 x 500 mmm

	迈科产品以省水、省电、省洗涤剂而著称，专业人士选择Meiko;
	.Meiko has developed a multitude of wash-up systems and solutions for the catering industry,which are ahead of competition in terms of saving the consumption of water,electricity,detergent and rinse-aid;

适用场所 Locations

	..专为酒吧设计，节省空间，常用于酒吧、咖啡吧、小型西餐馆等场所;
	..Suitalbe for bar ,coffee bar ,small restaurant etc;

　德国Meiko.迈科 台下式洗杯机
Undercounter Glass Washers_Germany Meiko

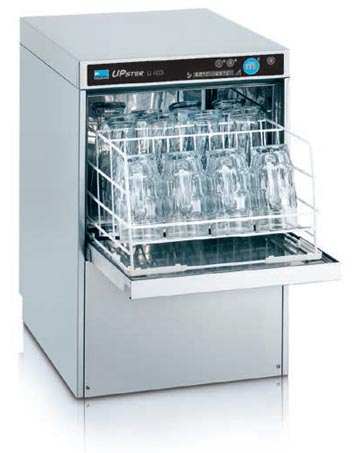

迈科台下式洗杯机 Uudercounter Glass washers 型号:U400(原型号 430F)

技术参数 Technical Data

总体尺寸　　　　Dimensions (W x D x H)	460 x 600 x 700mm
洗涤篮规格　　　Basket dimensions	400 x 400 mm
洗涤能力　　　　BasketCapacity	30 Baskets/h
入口高度　　　　Loading Height	300 mm
水槽容量　　　　Tank filling	11 L.
漂洗用水量　　　Final rinse	2.2L /basket
预置洗涤程序　　Pre-set cycles	120 / 180 / 240 秒
最大篮筐洗涤量　Output	30 / 20 / 15 筐/小时
总功率　　　　　Total connected load	3.7 kW
标准配置　　　　Standard features	.230V,50赫兹 .催干剂分配器 .自动清洗功能 .电漂洗加热器	.230V,50Hz .Rinse aid dosing .Self-cleaning unit .Electric booster

性能特点 Features

	上下嘴洗涤系统、双层内壁；
	Upper and lower wash systems,double-wall insulated;


	环保过滤系统、圆角深拉伸水槽；
	Enviroment-friendly filter system,deep-drawn tank with rounded corner;


	自动清洗功能、全电子轻触式控制面板；
	Self-cleaning cycle and electronic controls with sensor touch display;


	3种洗涤程序,应对不同品种的餐具清洗;
	3 Different wash cycles, and impressively low resource consumption.


	杯筐尺寸:400 x 400mm；
	Basket size: 400 x400 mmm

	迈科产品以省水、省电、省洗涤剂而著称，专业人士选择Meiko;
	.Meiko has developed a multitude of wash-up systems and solutions for the catering industry,which are ahead of competition in terms of saving the consumption of water,electricity,detergent and rinse-aid;

适用场所 Locations

	..专为酒吧设计，节省空间，常用于酒吧、咖啡吧、小型西餐馆等场所;
	..Suitalbe for bar ,coffee bar ,small restaurant etc;

　德国Meiko.迈科 台下式洗杯机/洗杯机
Undercounter Glass Washers & Dishwashers_Germany Meiko

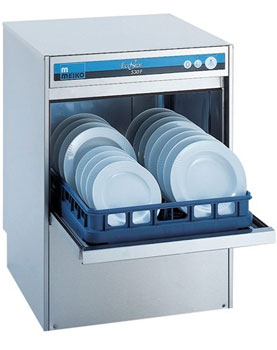

迈科台下式洗碗机/洗杯机 Uudercounter Dishwashers 型号: ECOSTA 530F

技术参数 Technical Data

总体尺寸　　　　Dimensions (W x D x H)	600 x 600 x 8850mm
洗涤篮规格　　　Basket dimensions	500 x 500 mm
洗涤能力　　　　BasketCapacity	30 Baskets/h
入口高度　　　　Loading Height	320 mm
水槽容量　　　　Tank filling	20 L.
漂洗用水量　　　Final rinse	3L /basket
预置洗涤程序　　Pre-set cycles	270 秒
最大篮筐洗涤量　Output	30筐/小时
总功率　　　　　Total connected load	3.55 KW
标准配置　　　　Standard features	.230V,50赫兹 .催干剂分配器 .自动清洗功能 .电漂洗加热器	.230V,50Hz .Rinse aid dosing .Self-cleaning unit .Electric booster

性能特点 Features

	上下嘴洗涤系统、双层内壁；
	Upper and lower wash systems,double-wall insulated;


	环保过滤系统、圆角深拉伸水槽；
	Enviroment-friendly filter system,deep-drawn tank with rounded corner;


	自动清洗功能、全电子轻触式控制面板；
	Self-cleaning cycle and electronic controls with sensor touch display;


	杯筐尺寸:500 x 500mm；
	Basket size: 500 x 500 mmm

	迈科产品以省水、省电、省洗涤剂而著称，专业人士选择Meiko;
	.Meiko has developed a multitude of wash-up systems and solutions for the catering industry,which are ahead of competition in terms of saving the consumption of water,electricity,detergent and rinse-aid;

适用场所 Locations

	..专为酒吧设计，节省空间，常用于酒吧、咖啡吧、小型西餐馆等场所;
	..Suitalbe for bar ,coffee bar ,small restaurant etc;

　德国Meiko.迈科 台下式洗杯机
Undercounter Glass Washers_Germany Meiko

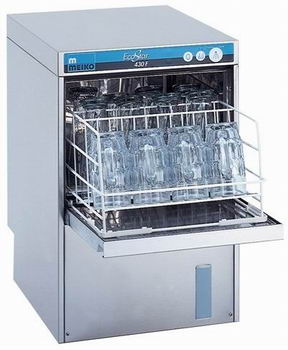

迈科台下式洗杯机 Uudercounter Glass washers 型号:Ecostar 430F

技术参数 Technical Data

总体尺寸　　　　Dimensions (W x D x H)	460 x 550 x 700mm
洗涤篮规格　　　Basket dimensions	400 x 400 mm
洗涤能力　　　　BasketCapacity	30 Baskets/h
入口高度　　　　Loading Height	300 mm
水槽容量　　　　Tank filling	11 L.
漂洗用水量　　　Final rinse	2.2L /basket
预置洗涤程序　　Pre-set cycles	120 秒
最大篮筐洗涤量　Output	30 筐/小时
总功率　　　　　Total connected load	3.5 KW
标准配置　　　　Standard features	.230V,50赫兹 .催干剂分配器 .自动清洗功能 .电漂洗加热器	.230V,50Hz .Rinse aid dosing .Self-cleaning unit .Electric booster

性能特点 Features

	上下嘴洗涤系统、双层内壁；
	Upper and lower wash systems,double-wall insulated;


	环保过滤系统、圆角深拉伸水槽；
	Enviroment-friendly filter system,deep-drawn tank with rounded corner;


	自动清洗功能、全电子轻触式控制面板；
	Self-cleaning cycle and electronic controls with sensor touch display;


	杯筐尺寸:400 x 400mm；
	Basket size: 400 x400 mmm

	迈科产品以省水、省电、省洗涤剂而著称，专业人士选择Meiko;
	.Meiko has developed a multitude of wash-up systems and solutions for the catering industry,which are ahead of competition in terms of saving the consumption of water,electricity,detergent and rinse-aid;

适用场所 Locations

	..专为酒吧设计，节省空间，常用于酒吧、咖啡吧、小型西餐馆等场所;
	..Suitalbe for bar ,coffee bar ,small restaurant etc;
