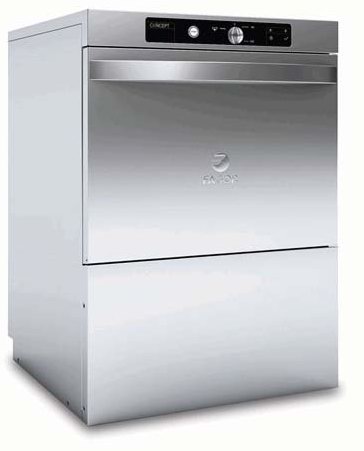

Fagor法格 CO-501(AD48)台下式洗碗机/洗杯机 Front Loading Dishwashers by Spain Fagor

	专业台下式洗碗机/洗杯机...西班牙 Fagor 清洁设备 Commercial Frond Loading Dishwashers...Fagor Spain

型号Model: CO501 (原型号AD-48)
台下式.洗碗机/洗杯机 Frond Loading Dishwashers

...	每小时可清洗720个盘(40筐/小时)；
	Output: 720 Dishs every hour(Baskets/Hour);


...	使用于：酒吧、咖啡吧等地方紧凑的场所；
	Suitalbe for bar ,coffee bar ,small restaurant etc;

技术参数 Technical Data

型号 Model	产地 Origin	产量 Output	水缸容量 Tank Cap.	水缸加热功率 Washing Power	杯筐尺寸 Basket Dim(mm)	耗水量（每次） Water Consumption(cycle)
CO-501	Spain 西班牙	720个盘子Dishs 40筐/小时	20 L	2.8 KW	500*500	2.7 L

性能特点 Features

	内置式喷淋加热器，并带有干燥剂分配器；
	Built-in rinse water boiler. Automatic rinse dispenser;


	温度控制：洗涤60℃，喷淋90℃；
	Thermostatically adjusted: wash 60 ℃, and rinse 90 ℃;


	安全保障：过热保护，门开启安全开关；
	Safety thermostat,Safety switch for door opening;


	附带1个平底杯筐,1个碟筐,4个刀叉盒；杯筐尺寸:500 x 500mm
	Equipped with 2 baskets and 4 cutlery containers. ;Basket size: 500 x 500 mm


	数字显示清洗和喷淋温度以及自我故障诊断系统；
	Digital display for rinsing and washing temperature;Self diagnostic system


	洗涤缸内部的圆角处理避免了污垢藏匿，双重过滤，能够让水长时间保持洁净；
	Wash tanks with rounded edges to prevent dirt from accumulating;double filter, easy remove to keep water clean for longer ;


新过滤系统：过滤挡板的高度增加了30%，避免食物残渣进入排水管和抽水泵；		喷淋孔大图；
Filtering system: The height of the filter has been increased by 30% in order to avoid any food particles getting through to the drain or the pump;		Detailed view of the different rinsing jets.


随机附送2个杯筐和1个刀叉盒；		上、下清洗臂，容易去除污垢，便于清洗；
All glass washers are fitted withat least two square baskets anda cutlery holder;		All models are fitted with two washing arms, one on top and at the bottom..


前面板很容易拆卸，便于保养维护；		清洗缸内的加热管；
Easy to remove front panel;		The element in the tank (as well as the one in the drum) directly heats the water in side.

操作说明 Operation Manual
	CO-501(原型号AD-48)洗杯机操作使用说明书-^英文版下载 ^English Operation Manual

适用场所 Locations

	..专为酒吧设计，节省空间，常用于酒吧、咖啡吧、小型西餐馆等场所;
	..Suitalbe for bar ,coffee bar ,small restaurant etc;
