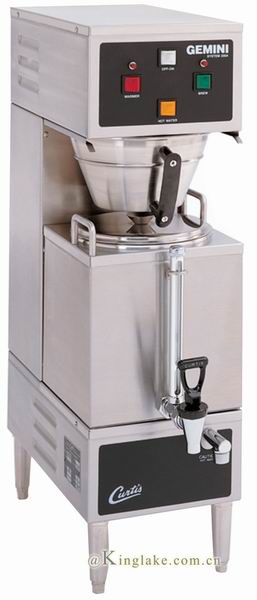

		美国Curtis... 滴漏式咖啡机（单缸.1.5加仑） Curtis Automatic Single 1.5 Gallon Coffee Brewer.USA

Model:GEM-230A

单缸.1.5加仑.全自动滴漏式咖啡机
Automatic Single 1.5 Gallons Coffee Brewer

Curtis首创的分离式咖啡保温方桶，可满足繁忙的商业需求，节省空间和费用；
...Curtis’ Gemini Systems are world renowned for their unique, removable Satellite Servers，just add satellites to expand your service；

每小时产量:250杯(42升）,蒸馏的咖啡醇厚、芳香四溢；
...Automatically brews up to 250 cups of hearty, aromatic coffee per hour;

特别适合大型活动、宴会、自助餐、会议中心等客人众多的场合；
...Suitable for Banquet,buffee,meeting center and cafeteria etc;

产品描述 Description

.品名 Description	单缸1.5加仑.全自动滴漏式咖啡机 Automatic Single 1.5 Gallon Coffee Brewer

.品牌 Brand	柯蒂斯 Curtis

.产地 Origin	美国 USA

.型号 Model	GEM-230A

主要参数 Technicals

	规格：229419781 mm H； Dimension:229419781 mm H


	电源：220V,4175W,19Amps,单相； Power:220V,4175W,19Amps,1 phase;


	产量：11加仑(42升)/小时； Output:11 gallons/Hour ;


	注水方式：自动加水； Water filling:Automatic


	毛重：27 公斤； Ship Weight：27 KG；

特点 Features

	每次自动蒸煮36杯（约1.5加仑），每小时产量：250杯（约11加仑）； Brews 36 cups automatically.Yields up to 250 cups per hour.;


	可用热水龙头冲泡茶、汤，即使在蒸馏咖啡时，也可同时使用； Hot water faucet lets you draw steaming hot water for tea, soups or cup meals — even during brewing;


	蒸煮的水量可调节，保证滴漏的咖啡至合适的口味； Adjustable water bypass for balanced coffee flavor;


	下部方形保温桶，双层隔热，可长时间保温，以保持咖啡的新鲜和香味； High-efficiency, double-wall insulation in each Satellite Server maintains coffee temperature for extended periods without warming. Coffee cannot deteriorate, but maintains its rich, full-bodied flavor；


	保温桶带锁盖，以防止咖啡液溅出； Locking Satellite lids guard against accidental spills;


	低水位和溢水保护功能； Automatic controls protect against low water and overflow;

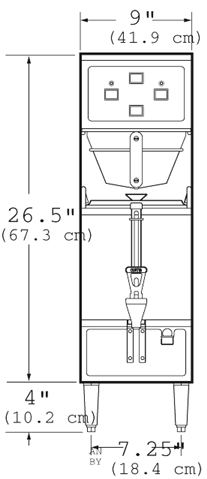

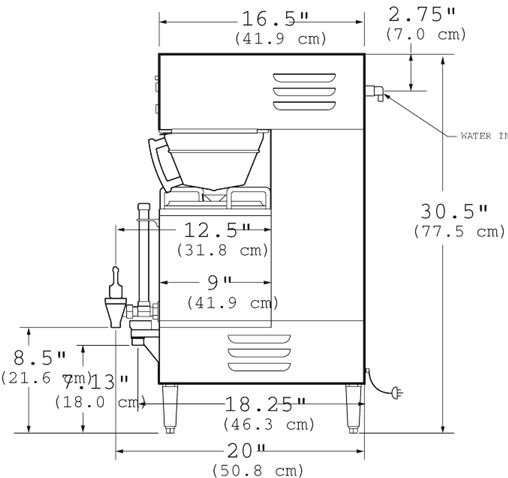

外形图 Overview of Products


正视图	侧视图
Front Vies	Side View

操作说明 Operation Manual
	GEM-230A Curtis 咖啡机使用说明- 英文版下载
	GEM-230A Automatic Coffee Brewer Operation Manual-English Version

Curtis产品目录 Curtis Products


GEM-120A	GEM-230A	GEM-12D	RU-150	RU-300

单缸.1加仑. 滴漏式咖啡机	单缸.1.5加仑. 滴漏式咖啡机	双缸.1.5加仑. 滴漏式咖啡机	单缸.3加仑. 全自动咖啡罉	双缸.3加仑. 全自动咖啡罉
Single 1.0 gallon. Satellite Brewer	Single 1.5 gallon. Satellite Brewer	Twin 1.5 gallon. Satellite Brewer	Automatic Single Three Gallon Coffee Urns	Automatic Twin Three Gallon Coffee Urns

Curtis公司简介...Brief about Curtis

	Curtis家族企业成立于1941年，60多年来保持了家族企业对产品特有的的精致、专致以及忠诚的品质。 Founded in 1941, Curtis has remained a family-owned business that is committed to the principles of quality workmanship, personal loyalty and family values.;


	Curits的名字，在世界上即意味着高品质的商用滴漏式咖啡机、冻茶机、果汁机。 The Curtis name is synonymous with a full line of the world’s most advanced, top-of-the-line commercial coffee brewing equipment, iced tea brewing systems and specialty beverage dispensers.


	Curits上世纪80年度，推出了便携式GEMINI系列咖啡罉，其可移动式保温桶，至今仍为业界的标准配备。 Early 1980s - Introduced the original GEMINI Coffee Brewing System. This hybrid between an urn and a decanter brewer provided the first removable insulated server, the Satellite, an industry standard to this day ;

相关咖啡罉参考

Relative Products of Coffee Urns

美国Cecilware.经典型... 全自动咖啡罉
Cecilware Automatic Coffee Urns.USA


CL-75N	CL-100N	FE-75N	FE-100N

3加仑.单缸.全自动咖啡罉	3加仑.双缸.全自动咖啡罉	3加仑.单缸.全自动咖啡罉	3加仑.双缸.全自动咖啡罉
Automatic Single Three Gallon Coffee Urns	Automatic Twin Three Gallon Coffee Urns	Automatic Single Three Gallon Coffee Urns	Automatic Twin Three Gallon Coffee Urns

瑞典Queen 咖啡罉...大型蒸馏式咖啡机

Sweden Queen Coffee Tower...Bulk Brewers


单塔咖啡罉 Bulk Brewer..Single Tower	双塔咖啡罉 Bulk Brewer..Twin Tower	挂壁便携式咖啡罉 Bulk Brewer..Wall Tower
